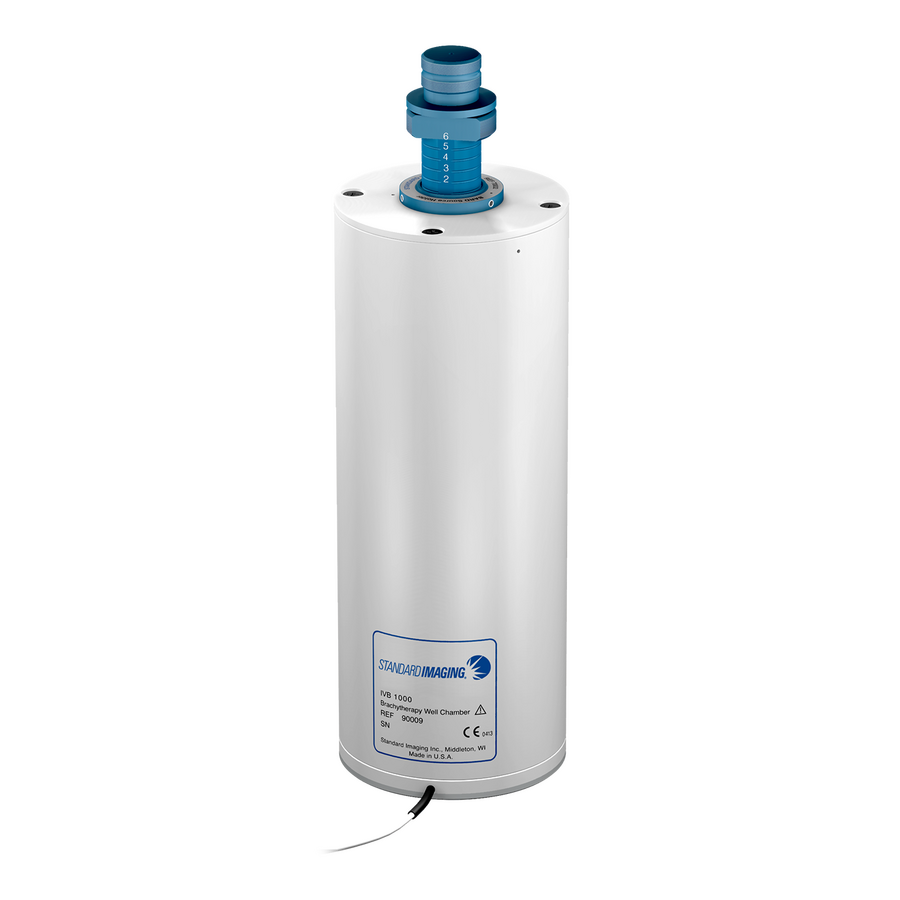

IVB 1000 Well Chamber Tailored for Calibration of Long Source Trains

Name: IVB 1000 Well Chamber
SKU: 90009
Availability: InStock

Global standard for independently verifying brachytherapy source strength.

IVB 1000 Well Chamber Overview

Superior Functionality

An exceptionally long 100 mm sweet spot, unmatched in other chambers, accommodates long source trains and wires.
Calibrates individual and multiple isotopes.
Outstanding versatility, use one chamber for many isotopes.
Source holders available for most existing sources.

Assurance is Confidence

Satisfies NRC requirements and TG-60 quality assurance requirements for IVB source strength verification.

Precise and accurate calibration of HDR and LDR Iridium, Iodine, Palladium, Cesium, and Strontium brachytherapy source activities.

Dimensions

Height

25.9 cm
Diameter

10.2 cm
Insert Diameter

3.5 cm
Insert Height

22.4 cm
Weight

3.5 kg

Product Standards

IEC 60601-1, IEC 60601-1-2

Operating Parameters

Temperature

10 to 40 °C
Relative Humidity

20 to 80% non-condensing
Pressure

650 to 770 mmHg

Storage Parameters

Temperature

-15 to 50 °C
Relative Humidity

10 to 95% non-condensing
Pressure

600 to 800 mmHg

Publications

Effect of well chamber altitude pressure corrections for cesium Blu 131Cs and CivaDot 103Pd brachytherapy sources

On the stability of well-type ionization chamber source strength calibration coefficients

A radiation quality correction factor kQ for well‐type ionization chambers for the measurement of the reference air kerma rate of 60Co HDR brachytherapy sources

Correspondence Factor Correction Coefficient for Commissioning of Leipzig and Valencia Applicators with the Standard Imaging IVB 1000

Calibration of 192Ir High Dose Rate Afterloading Systems

HDR micro-Selectron Quality Assurance Studies Using a Well-Type Ion Chamber

Quality Assurance Calibration of 125I Rapid Strand in a Sterile Environment

Calibration of Multiple LDR Brachytherapy Sources
