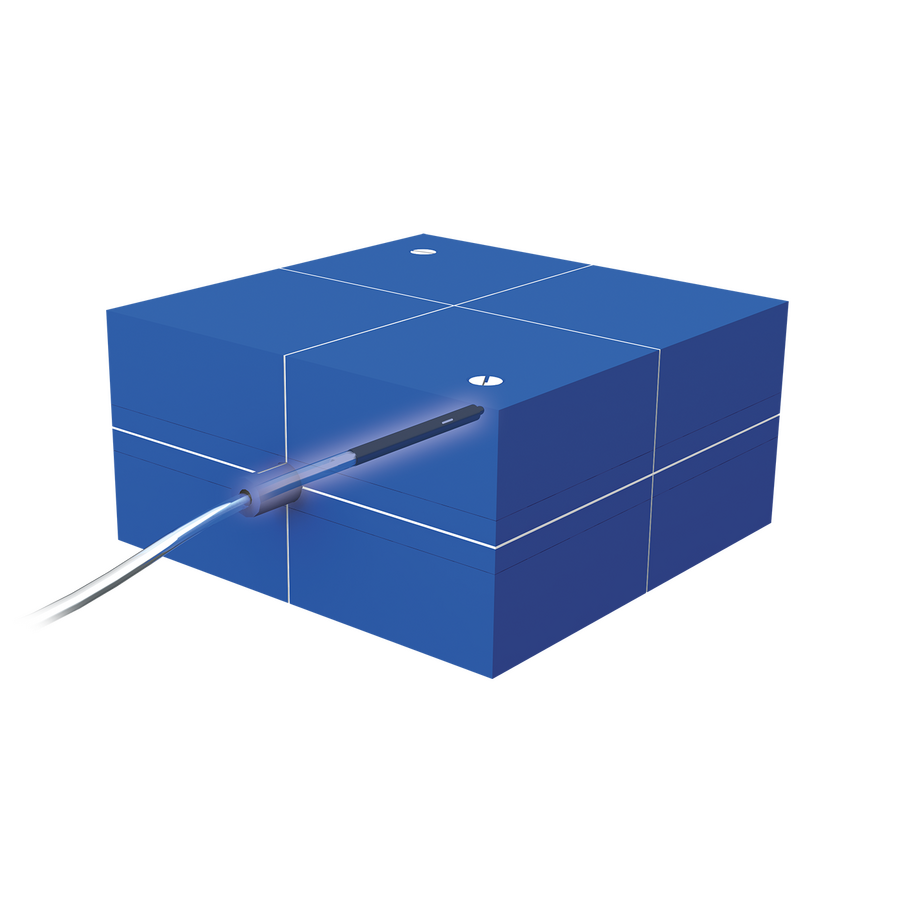

Stereotactic Dose Verification Phantom

Stereotactic Dose Verification Phantom part of complete solution for: Stereotactic CyberKnife

Stereotactic Dose Verification Phantom Download:

Using the Stereotactic Dose Verification Phantom with CyberKnife®

Assembled Phantom Dimensions

Height

10.00 cm (3.94 in.)
Width

20.00 cm (7.87 in.)
Length

20.00 cm (7.87 in.)

Weight

Complete Stereotactic Dose Verification Phantom (ion chamber or film configuration)

4.4 kg (9.7 lbs.)
SRS Dosimetric QA Slab only

0.9 kg (2.0 lbs.)

Core Target Shape Volume

"Tentacle" Shape

9.86 cm3
"C" Shape

2.38 cm3
"Avoidance Structure" Shape

0.56 cm3

Fiducial Dimensions

Gold Markers

Ø 0.8 x 5 mm long
Lead BBs

Ø 1 mm

Publications

Radioluminescence imaging feasibility for robotic radiosurgery field size quality assurance

Commissioning of and preliminary experience with a new fully integrated computed tomography linac

Dosimetric impact of phase shifts on Radixact Synchrony tracking system with patient-specific breathing patterns

Commissioning a multileaf collimator virtual cone for the stereotactic radiosurgery of trigeminal neuralgia

Comparison of Measurements From Two Diode Array QA Devices to Deep Point Dose Measurements with Two Treatment Planning Model Settings for Brain VMAT SRT Patient-Specific QA

Mcckay Sdvp Poster

Sdvp1 Ck Users Mapcheck Final
